FULL XLA2

Technical Features 技術特性

Amplifier 功率放大器：5000 W. Program power. 1000W+1000W (LF AES) 500W (HF AES)

Input Sesitivity 輸入靈敏度：8dBu-1,94 V

Input Impedance 輸入阻抗：20KOhms Balanced

Mains 電源： Universal Switch Mode Power Supply 85-265V/45-65Hz. Overvoltage Protection（通用開關電源85-265V/45-65Hz。電壓過載保護）

Average Current Draw 平均電流消耗：3A(Heavy Duty Musical Program)

SPL(1m.) 聲壓級：140 dB (Peak 144 dB)

Built-In DSP 內置DSP：64 Bit Processing unit Includes Factory Presets

AD/DA ConverteresA D/DA轉換器：24 Bits-48kHz- SNR>112 dB

Presets 預設：HPF 60 Flat / HPF 60 Nearfield / HPF 60 Long-Throw

                Plus 25 Configurable User Memories

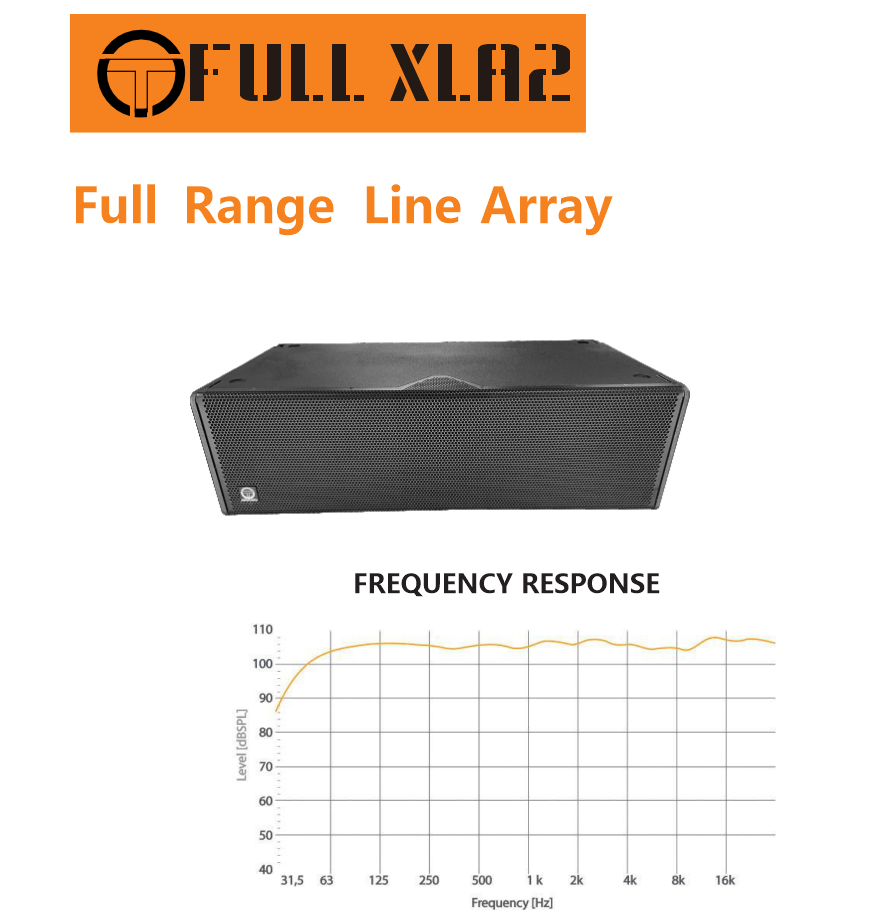

Frequency Response 頻率響應：(-10dB) 35 hz-18KHz

LF 低頻：2x12" Neodymium Woofers (4" Voice Coil)

HF 高頻：3x1,4nTitanium Diaphragm, Neodymium Magnet Compression

Driver：

Directivity (HxV)方向性：90°x10°

Rigging System Adjust Box Construction 箱體吊掛件可調角度：0°/1°/ 2,5°/ 3,5°/ 5°/ 6°/ 7°.Easy positioning system

Box Construction：Multilayer Baltic Birch Plywood

Finish 表面：High Resistant Black Polyurea Coating

Grille 網面：2mm.Steel with Internal Black Micro-Foam

Connectors 連接器：1xXRL3 Input / 1xXLR3Link / 1x AC PowerCon Imput/

                      1x AC PowerCon Link / IxEtherCon RJ45 IN / 1x EtherCon Link

Dimensions (HxWxD) 尺寸 ：350x1170x570 mm. / 13.78x46x22,44 Inches

Weight 重量：59.85 Kg. /132 Lb.
